Compact Control. Massive Flexibility.

Mastermind PBC/6X

6 Audio Loops + Insert

The order of the loops can be changed from preset to preset. The last three loops and the insert loop are stereo capable.

7 User Configurable Buttons

Each button can be configured for different functions using the Mastermind Editor app.

Connectivity Features

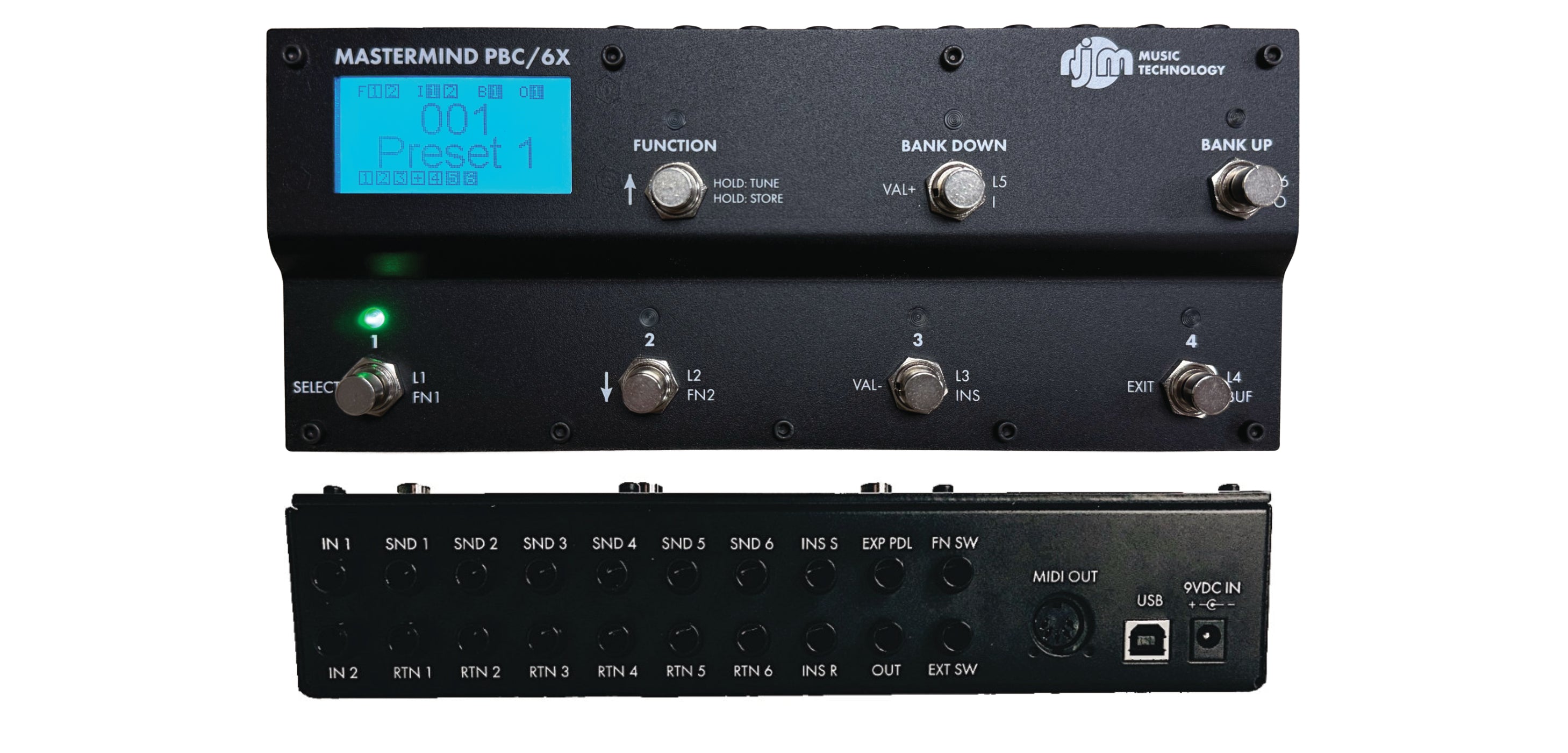

Rear panel allows connections to MIDI devices, expression pedals, external switches and computers. The Function Switch output allows the PBC/6X to control most devices with footswitch jacks.

Compact, powerful and flexible. A pedalboard switcher suited for pedalboards both large and small.

DESIGNED FOR PLAYERS WHO WANT THE POWER OF A PROFESSIONAL TOURING RIG WITHOUT THE SIZE AND COMPLEXITY.

The Mastermind PBC/6X gives you total control over your pedals, amps, and MIDI devices — all from a compact footprint that fits almost any board.

FEATURING

6 Audio Loops

Connect and control your favorite pedals with programmable switching and routing flexibility.

Matrix Switching

Instantly reorder pedals in your signal chain without physically rewiring your board.

Stereo Capability

Three loops support stereo routing for modern wet/dry and ambient setups.

MIDI Control

Control MIDI-capable pedals, processors, switchers, and rack gear directly from the PBC/6X.

Amp Channel Switching

Switch channels and functions on compatible amplifiers using built-in function switches.

Integrated Tuner

Fast, reliable tuning without needing extra pedalboard space.

Change Pedal Order On The Fly

Rewire Your Rig Instantly

Most switchers lock your pedals into a fixed signal chain.

The PBC/6X changes that completely.

Its matrix switching architecture allows you to reorder compatible loops digitally — meaning your overdrive can move before or after modulation, delays can shift positions, and entire routing strategies can change per preset.

No rewiring.
No compromises.
No tap dancing.
100% analog signal path.

Most switchers lock your pedals into a fixed signal chain.

The PBC/6X changes that completely.

Its matrix switching architecture allows you to reorder compatible loops digitally — meaning your overdrive can move before or after modulation, delays can shift positions, and entire routing strategies can change per preset.

No rewiring.
No compromises.
No tap dancing.
100% analog signal path.

Mastermind PBC/6X Features
  • 6 audio loops
  • The last three loops are stereo capable using TRS jacks
  • Matrix switching for maximum routing flexibility
  • Flexible output that can be mono, stereo, or used as an A/B/Y switch
  • Mono mixdown feature allows you to mix down your stereo output to mono when using with a single amp
  • Two inputs, one with a switchable buffer
  • 7 buttons, each with a multi-color LED indicator
  • Buttons are user configurable – any button can be set to any function and LED color
  • Easy to read backlit LCD display that can display preset and song names, plus other status
  • Built in tuner
  • MIDI connection, powered by the MIDI “brain” of our Mastermind GT controller. This MIDI port can be split into a MIDI input and output using a special Y cable
  • USB device port for connection to a PC or Mac. This allows the Mastermind PBC to send MIDI commands to a computer, or to communicate with the Mastermind Editor software
  • A 1/4-inch TRS jack that provides two function switches. These can be used to control the channel switching and other features on an amplifier, or for externally switchable features on certain pedals
  • Expression pedal input that can be programmed to generate MIDI messages based on the position of the pedal
  • External switch input allows two more switches to be added. These switches can be programmed to perform any function the internal buttons can
  • Mac and PC editor software allows for faster and more comprehensive editing, including deep MIDI editing and changing button layouts
  • 3 year limited warranty
  • 6 audio loops
  • The last three loops are stereo capable using TRS jacks
  • Matrix switching for maximum routing flexibility
  • Flexible output that can be mono, stereo, or used as an A/B/Y switch
  • Mono mixdown feature allows you to mix down your stereo output to mono when using with a single amp
  • Two inputs, one with a switchable buffer
  • 7 buttons, each with a multi-color LED indicator
  • Buttons are user configurable – any button can be set to any function and LED color
  • Easy to read backlit LCD display that can display preset and song names, plus other status
  • Built in tuner
  • MIDI connection, powered by the MIDI “brain” of our Mastermind GT controller. This MIDI port can be split into a MIDI input and output using a special Y cable
  • USB device port for connection to a PC or Mac. This allows the Mastermind PBC to send MIDI commands to a computer, or to communicate with the Mastermind Editor software
  • A 1/4-inch TRS jack that provides two function switches. These can be used to control the channel switching and other features on an amplifier, or for externally switchable features on certain pedals
  • Expression pedal input that can be programmed to generate MIDI messages based on the position of the pedal
  • External switch input allows two more switches to be added. These switches can be programmed to perform any function the internal buttons can
  • Mac and PC editor software allows for faster and more comprehensive editing, including deep MIDI editing and changing button layouts
  • 3 year limited warranty
