RJM Music Technology, Inc.
Sale price$199.00

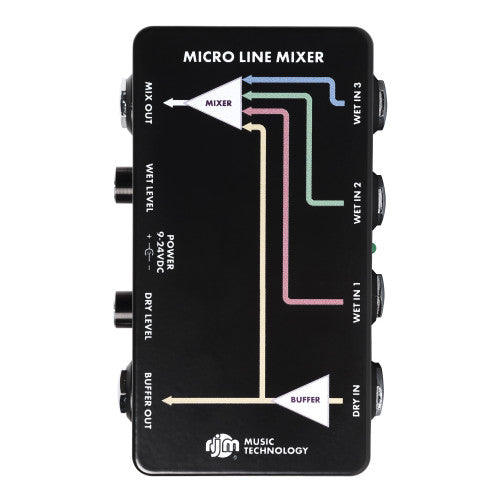

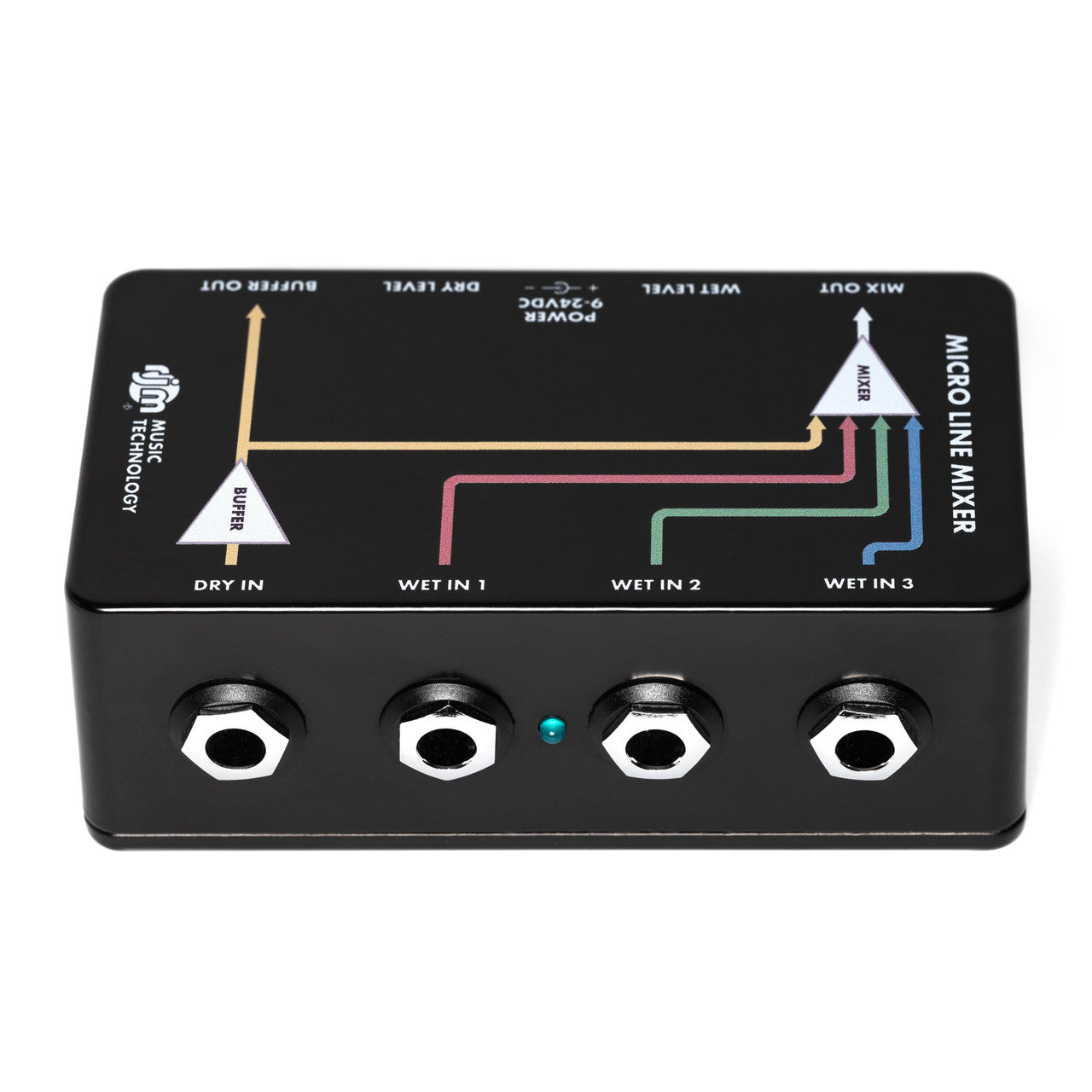

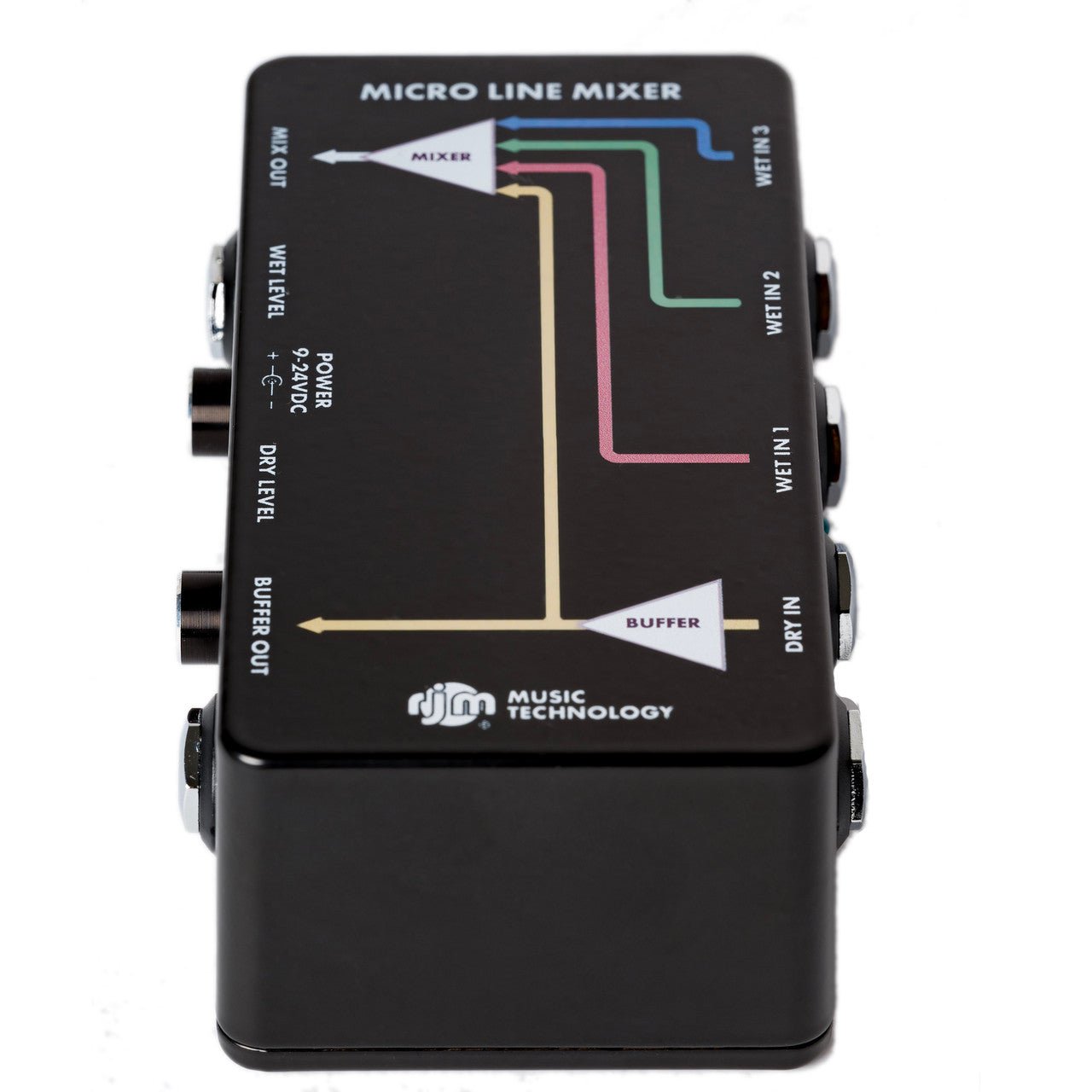

The Micro Line Mixer is a 4 input stereo mixer that’s small enough to fit on a pedalboard. It’s ideal for creating parallel or wet/dry/wet guitar rigs, or for any place audio signals need to be combined.

The Micro Line Mixer is a simple product with many applications. It combines up to 4 incoming mono or stereo audio signals into one, which makes it useful for many purposes, for example:

  • Creating a parallel effect system
  • Creating a Wet/Dry/Wet effect system
  • Mixing multiple audio sources such as synthesizers, preamp outputs, etc.
Features include:
  • A "dry" input that can be configured for mono or stereo input, mono or stereo output
  • 3 "wet" inputs that are stereo (but compatible with mono signals)
  • 1 output that's a buffered version of the dry input signal
  • 1 output that contains all 4 inputs, mixed down together
  • 1 level control for the dry input
  • 1 level control that controls all of the wet inputs together

The Micro Line Mixer requires a 9-24VDC center negative (Boss-type) power supply, with 50mA or more of current capacity

POWER SUPPLY SOLD SEPARATELY

You can find a compatible power supply on our website.

Specifications:
  • Dry Input: 1MΩ input impedance
  • Wet Inputs: 100kΩ input impedance
  • Outputs: 150Ω output impedance
  • Level Controls: -∞ to unity gain
  • Frequency Response: 20Hz-20kHz
  • Headroom: +9dBV using 9V power supply, more with higher voltage power supplies
  • Power Requirements: 9-24V DC (center negative polarity), 50mA minimum. Power supply not included.
  • BOSS-type power connector, 5.5mm/2.1mm barrel connector
  • Dimensions: 4.41 (w) x 2.38 (d) x 1.65 (h) inches (11.20 (w) x 6.05 (d) x 4.19 (h) cm)
  • Weight: 0.5 lbs / 227g
  • Made in USA
  • 3 year limited warranty
